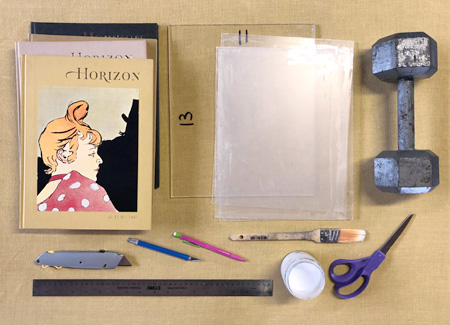

You Will Need
- Top slab
- Plastic dividers or plastic wrap
- Box cutter
- X-Acto knife
You will also need the shop tools. See the Supplies page for more information on all these items.
Stage 1: Prep the books and glue the pages.

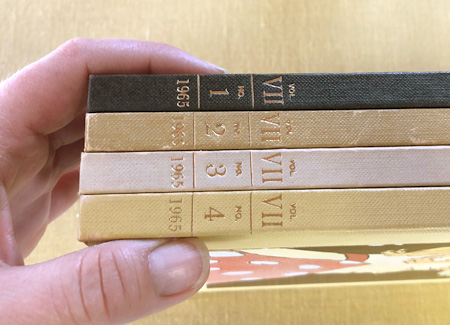

Step 1: Put your books in order.
You're going to treat your top and bottom books differently, so make a stack of your books in the order you want them to be in.

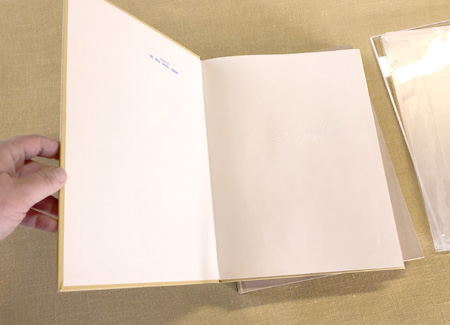

Open the top book and take a look at the front endpaper. This sheet of extra thick paper is glued to the cover (on the left side) and the front of the pages (on the right) and it holds the book together. You'll need it to re-assemble the book box after you've cut out the cavity, so it must be kept in good condition.
In most books, you'll have one regular page attached to the endpaper, known as the "first sheet". This page is NOT necessary, and will get in the way later, so if your top book has one (and most do, and some books have more than one) you'll start by...

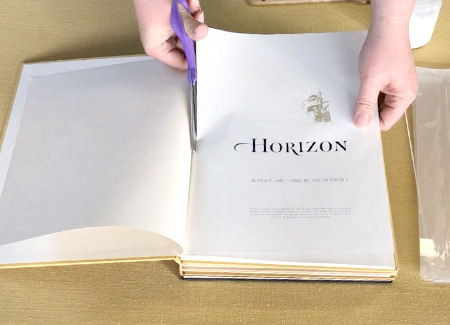

Step 2: Cut off the first sheet, if it's glued to the endpaper.
Use scissors and remove the first sheet. If multiple pages are glued to the endpaper, cut them all off. This only has to be done to the top book.
You don't have to be super neat about this; you just want to get rid of this page so it's not in the way when you finish the book box.

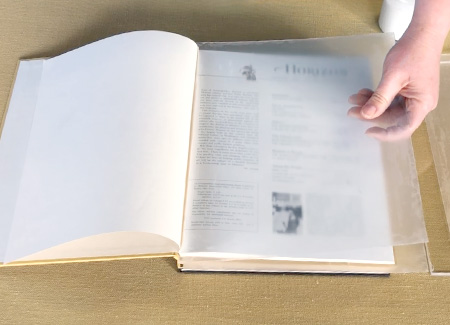

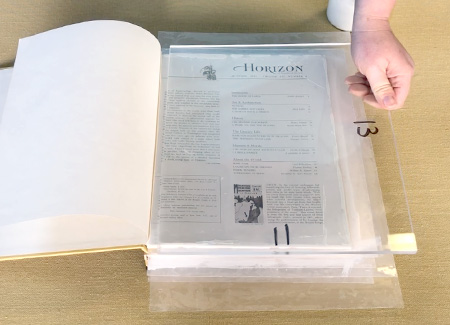

Step 3: Separate all pages from their covers with plastic sheets or plastic wrap.
You'll be gluing the outside of the pages, but you don't want to glue them to anything else in the process. I use flexible translucent plastic sheets between the pages and the covers, but you can also use plastic wrap.
In all books, the bottom plastic goes between the back cover and the pages.
On the top book, place the top plastic between the front endpaper and the rest of the pages. You want to protect your front endpaper so that it's NOT glued to the rest of the pages.
For all other books in the stack, place the top plastic between the the top cover and the pages.

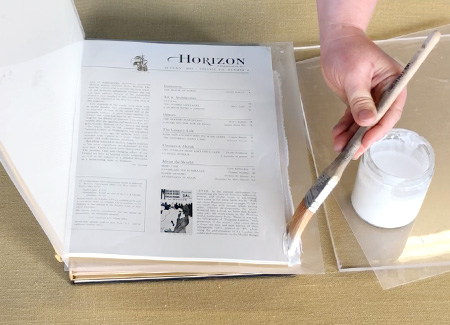

Step 4: Paint all the page edges with glue.
Take each book and brush glue around the page edges. This should be a thin but complete layer, covering all three exposed sides of the pages.
Make sure to run the brush up against the plastic dividers, so the glue goes all the way to the top and bottom edges.
Repeat this process for all other books in the stack, until all the books have been glued on the pages.

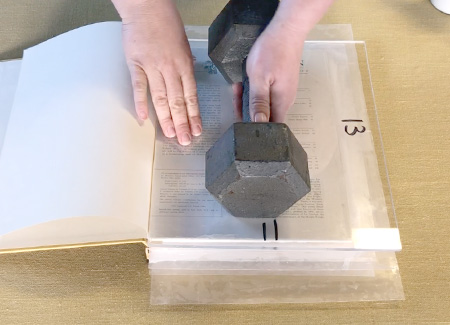

Step 5: Weigh the books down and let them dry.
Re-stack your books, then place a flat, sturdy slab on top of the book. Since I'm using acrylic plates, and the glue won't stick to them, I can remove the top plastic divider; if your top slab might stick to glue, leave the top plastic in place.
Place a heavy weight on the top slab, something 40 pounds or more. Make sure everything squares up: twisted or tilted books will ruin your book box.
Leave your setup to dry. I like to give it 24 hours, but you may need more or less time depending on temperature and humidity. It's always better to err on the side of a longer drying time; taking the weight off too early can allow the pages to warp.
Stage 2: Glue the Books Together

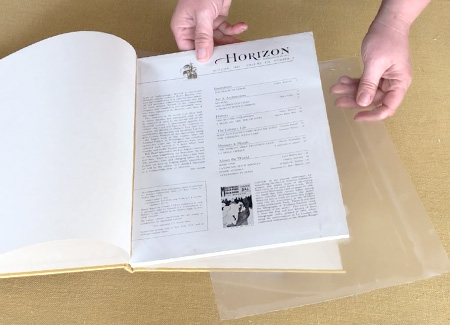

Step 6: Remove the books from the setup.
Take the weight off and remove the top slab and the plastic dividers. If you're using plastic sheets, or plan on re-using your plastic wrap, now's a good time to clean them off, peeling off the bigger blobs of dried glue.

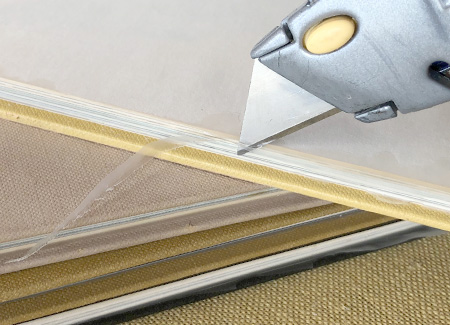

Step 7: Trim the excess glue off the edges.
In every book, run a blade along the edges of the pages to trim off any protruding dried glue. You don't want this extra glue showing when you assemble the book box.
I use a box cutter for this, as I can get a better grip, and the wider blade makes it easier to hold parallel against the page block, so I don't cut into the paper by accident.
Step 8: Glue the covers down on all the books.
Be careful here, because you do NOT want to glue the top book's front cover and the bottom book's back cover, since those covers have to be folded out of the way later.
(For the sake of clarity in the photographs, I've put plastic sheets in the books to show what should not be glued; it is not necessary for you to do the same.)
Start gluing on the bottom book. Paint a thin layer of glue on top of the pages, around the edge. Close the top cover onto the glue. The bottom book has an unglued and loose back cover.
For all middle books, paint glue around the edges on the top AND bottom of the pages, then close the covers. The middle books are entirely glued together with no loose covers.
For the top book, paint glue around the edges on the bottom of the pages, then close the back cover onto the glue. The top book has an unglued and loose front cover and front endsheet.

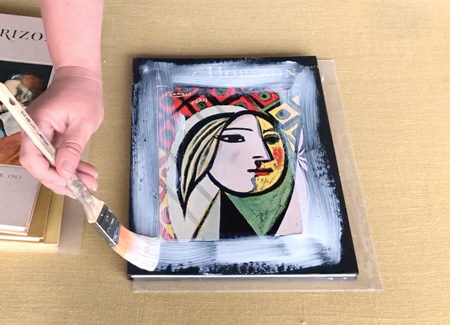

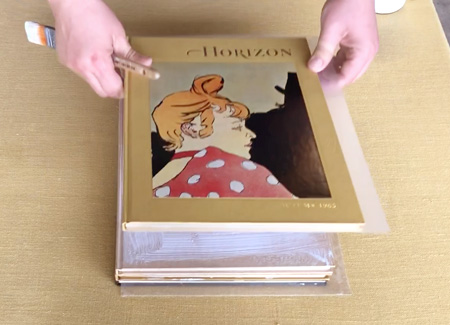

Step 9: Glue the books into a stack.
Now that the books are all glued together, it's time to glue them into a stack.
Take the bottom book, paint a thin layer of glue onto the top, and then press the next book on top of it.
Glue and stack the rest of the books in the same way, until the top book has been placed.
Make sure the stack is square and even! Check all sides to make sure everything is straight.

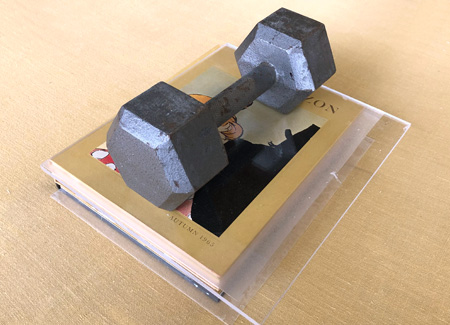

Step 10: Weigh the books down and let them dry again.
Place a flat, sturdy slab on top of the book, then put a heavy weight back onto the top slab. Wipe away any leaking glue.
Once again, make sure everything is nice and squared up. Leave it alone for another 24 hours.

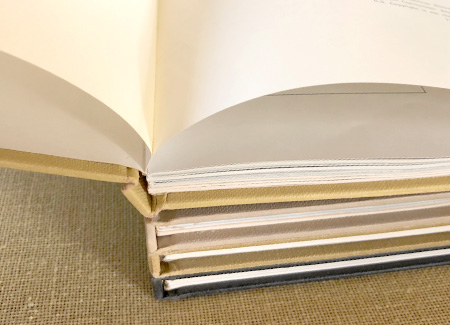

Here's the result when it's dried: a brick of the books with everything glued together except the back cover, the front cover, and the front endpaper.

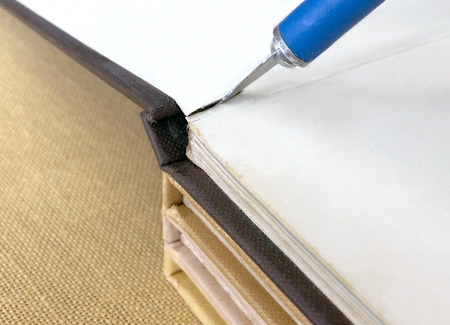

Step 11: Cut through the bottom book's back endpaper.
After the stack has dried, open up the back cover, take an X-Acto knife, and carefully slice the endpaper between the page block and the back cover. You want to cut the endpaper ONLY, and not the cover behind it.
In cheaper books, this is the only cut you'll need to make, but higher-quality books often have layers of materials and glue attaching the cover spine to the pages. You will need to cut through this, very slowly and carefully, to peel away the cover from the spine without cutting the cover.

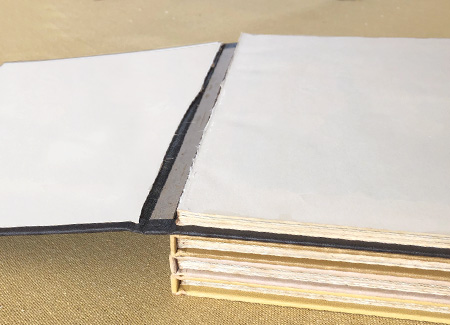

The finished cut with the back cover peeled away.

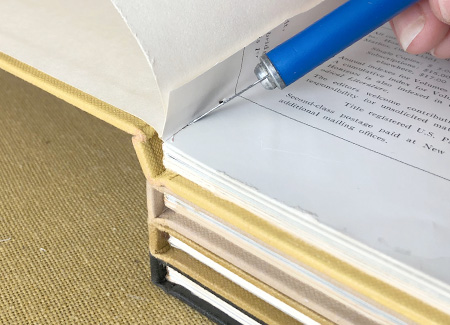

Step 12: Cut the front book between the endpaper and the pages.
This step is difficult: cutting the front cover free WITHOUT cutting the front endpaper.

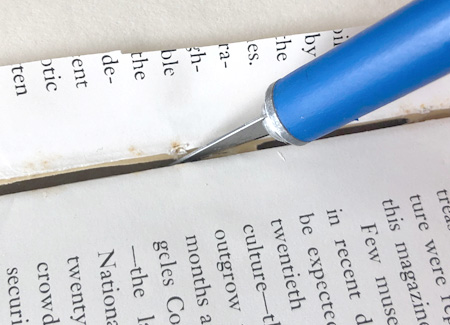

Figure out the best angle to insert the X-Acto blade between the front endpaper and the page block. Work slowly and carefully, slicing through the entire length of the book without nicking the endpaper
As with the last step, if the cover's spine is still attached to the pages, it must be carefully cut away from the pages.

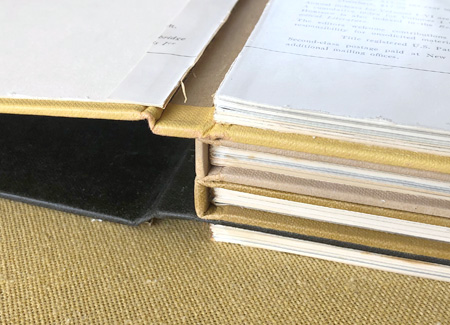

Success! Now the back cover and top cover (with the front endpaper attached to it) can be folded out of the way for sawing.
Step 13: Mark out the cavity.
Keep the front cover to the side and mark out a rectangle for the cavity in the book stack. The walls should be an inch thick on all sides.

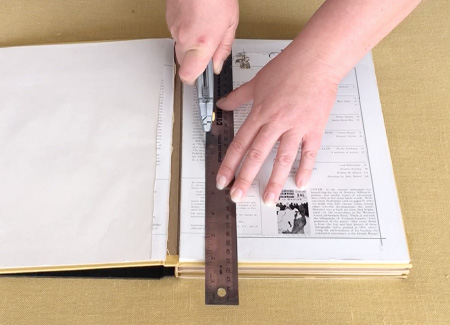

Step 14: Cut the cavity top with a box cutter.
Take a ruler and a box cutter and cut out the rectangle you've just drawn. Start and end cuts about 1/4 of an inch outside of the rectangle to make sure the paper is cut all the way through. Press hard and keep the blade straight down: an angled cut will mess you up later.

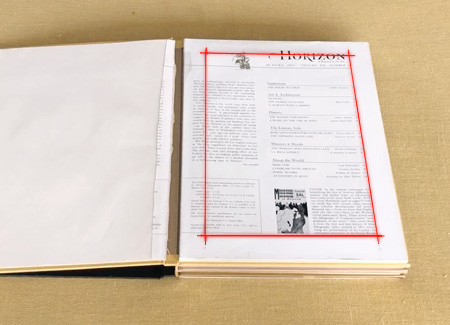

The red highlights show where your cuts should start and end.

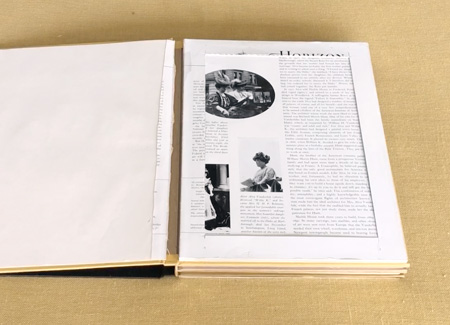

Step 15: Remove all the pages that were completely cut out.

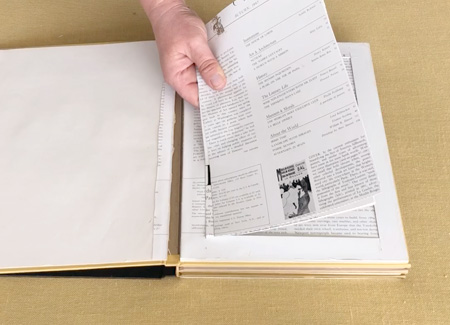

Peel out all the paper that's been cut clean through on all 4 sides. This may be only a dozen or so sheets. Any paper still attached to the book can stay where it is.
Why do this first cut by hand, when you're taking the stack over to the scroll saw next? Well, it's notoriously hard to cut straight on a scroll saw. The rectangle you've just cut out will provide a guide that's more accurate and easier to follow than drawn lines.
Stage 3: Drilling and Sawing

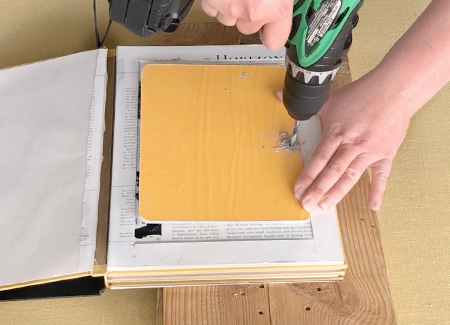

Step 16: Drill a pilot hole through the book stack.
Flip the front and back covers to the side. If you don't have a drill press, lay the stack on a scrap piece of wood. Position the hole near the edge of the cavity but not touching it.
Put something stiff on top of the stack (a thick piece of scrap chipboard, colored yellow, is shown in the photo) and press it down HARD with your free hand while drilling. This downward pressure will keep the paper from bunching up around the drill bit, which can make the pages bulge out in both directions, separating the books.

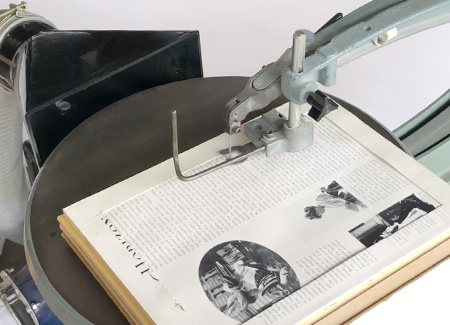

Step 17: Set up your scroll saw.
Thread the blade through the hole and load it into the saw. (See the Supplies page for tips on scroll saw blades and where to get good ones.) Adjust the saw's hold-down clamp to apply a bit of pressure on the book stack: you want to keep the book stack from jumping up and down during sawing, but you also want to move it around easily.
Note to experienced scroll saw-ers: you can skim the following instructions, as they're made mostly for scroll saw neophytes. You probably already know how to turn a corner.

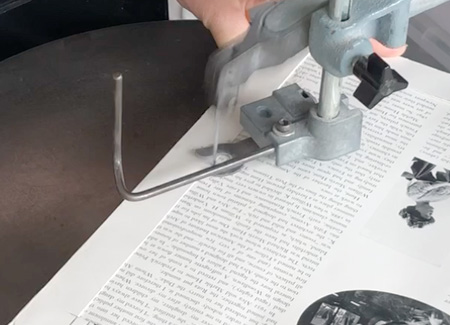

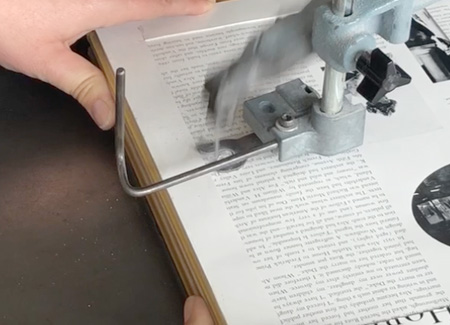

Step 18: Saw out of the pilot hole and into the first side.
Turn the saw on. Gently push the page block against the blade to cut towards the outside edge.
Because you are cutting a thick stack of difficult materials, this will be a VERY slow process. Let the saw set the pace, even if that's just a millimeter at time.
When the blade gets close to the wall, start turning the book so that the cut gradually curves around to start running along the first side. Because the blade is large, you can't make very tight curves (forcing the blade to turn too sharply can break it) so give yourself some space to make the turn.
Step 19: Saw down the first side.
Start cutting the first side of the cavity. Rather than following a drawn line, follow the walls of the rectangle you made with the box cutter.
Keep the cut straight by keeping the side of the blade exactly at the edge of the rectangle! (See the photo on the left.)
Move the page block in whatever way necessary to keep the blade aligned at the inside of the pre-cut rectangle. This way, the blade will complete the cut that the box cutter started, and leave a perfectly straight and smooth cavity wall in its wake.

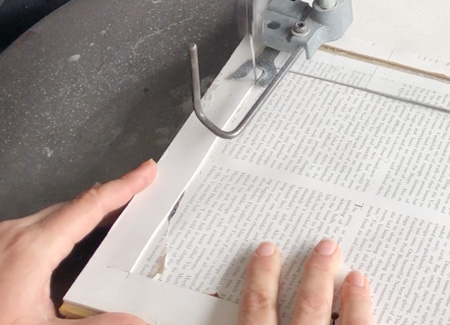

Tip: Keep in mind that scroll saws DO NOT CUT STRAIGHT!!!
Scroll saws cut at an angle, and to compensate, you have to feed the book stack into the blade at an opposite angle in order to create a straight cut in the work. The angle of the scroll saw's cut, and thus the angle you have to push the stack in, is never the same, and is always changing based on the wear of the blade and the invisible grain of the paper.
Like trying to drive straight in a car with badly aligned wheels, cutting straight on a scroll saw requires constant corrections and fine-tuning to keep the final product on track. Learning how to make a good cut can take lots of practice.

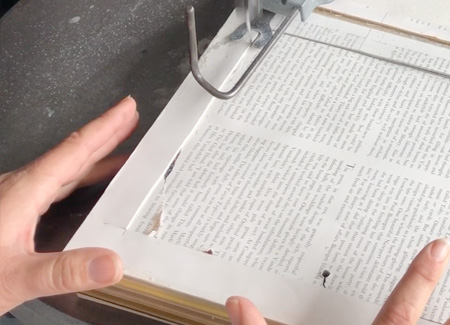

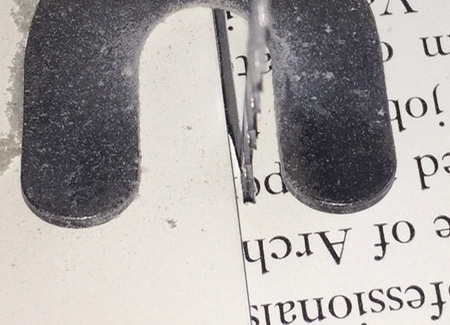

Tip: If you're going to go off track, err on the side of cutting inwards, instead of outside.
The "mistake" cut on this photo has been exaggerated for effect, but the point is that extra cutting inside the cavity can be "sanded" off later, but a cut outside the rectangle, towards the edge of the book stack, is harder to fix.
Tip: Let the blade take the wheel from time to time.
Don't force the blade to bend by inadvertently pushing the stack to the left or right. Every now and then, take pressure off the page block and let the blade pull it back towards the center.
Step 20: Make the first corner.

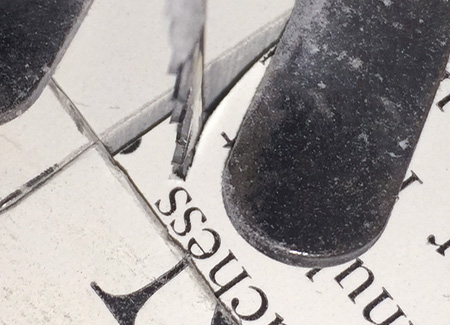

Saw straight until the blade touches first corner, then back up (keeping the saw running at all times) and saw a new path around the corner, heading into the next side. You'll come back and cut out the rest of that corner later.

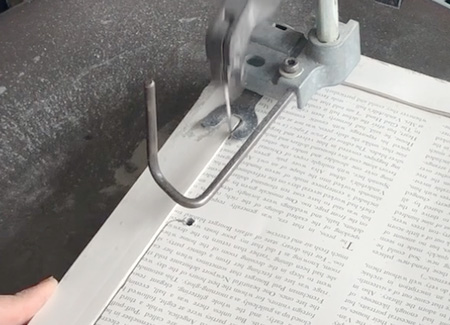

Step 21: Saw the rest of the sides.
Repeat Steps 19 and 20 around the rest of the book stack, sawing straight down the sides and turning around the corners. If any pages on the top come loose in the process of sawing, go ahead and remove them.
Once you arrive back at the first cut, the inside of the stack will be free.

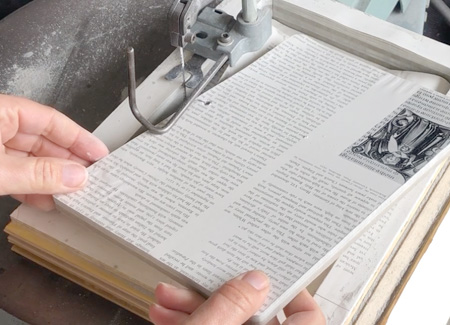

Step 22: Remove the cut pages and cover pieces.
Turn off the saw, pull out the cut pages and cover pieces, and shop vac away the extra dust. You now have a rough cavity, but it needs cleaning up.

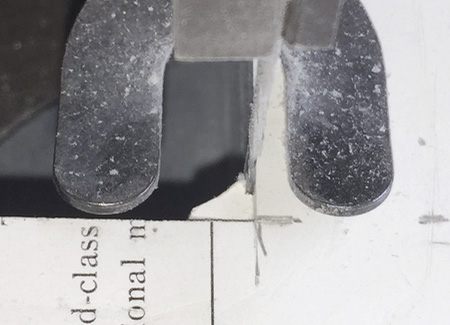

Step 23: Cut out the corners.
Turn the book stack around and saw off those hanging corners. Once again, keep the side of the blade exactly at the edge of the box cutter-made rectangle.
You'll know you've finished cutting the corner when the hanging paper bits fly off like confetti.

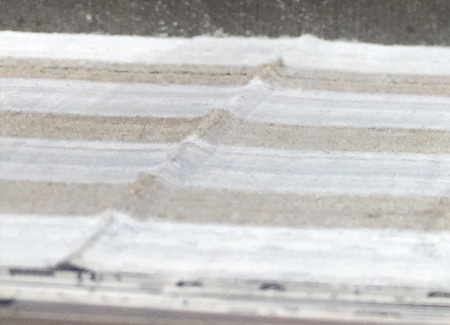

Step 24: "Sand" off any bumps or bulges.
Look straight down at sides and compare the scroll saw cut with the box cutter cut along the top. This makes it easy to see any areas that are rough or uneven.
In this photo, you csn see the rough bump from where the sawing started on the side. This bump needs to be "sanded" off.

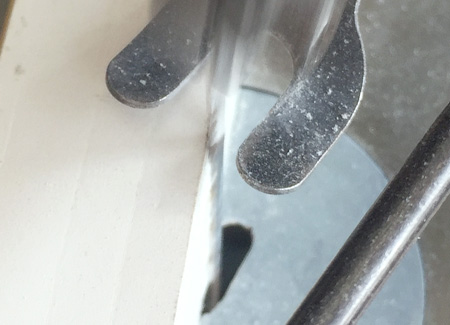

Your scroll saw now doubles as a sander. Gently run the bumps or rough patches against the blade to grind them off. As with cutting, getting good at this will take practice.

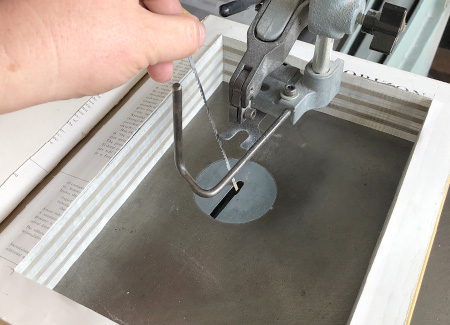

Step 25: Take the book stack off the saw and clean up.
All done with sawing! Take out the blade, remove your cut book stack, and take a shop vac to your work space. Now it's time to head back to the glue.
Tip: How long does it take to saw a book stack?
It usually takes me around an hour, MUCH longer than single books. Use new, sharp blades for these jobs, and save the old/dull blades for easier book safes.
Stage 4: Gluing the inside

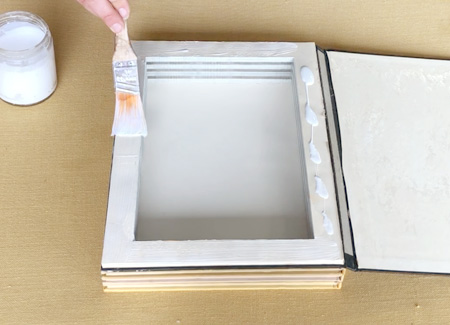

Step 26: Glue the back cover.
Paint the back of the bottom book with a thin, even layer of glue, and then press the back cover down, re-assembling the bottom book. Then, flip the stack over so you can glue the inside.
Step 27: Paint glue over the inside of the cavity.

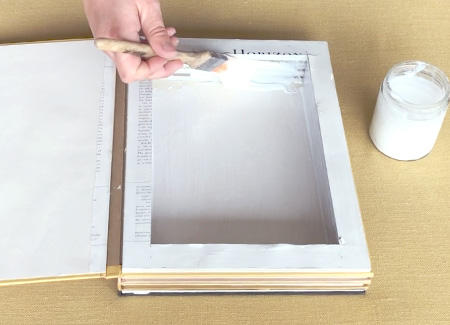

Take your time on this step. Paint glue around the sides of the cavity, and then run the brush over the bottom and sides multiple times to make sure the entire inside is evenly coated. (The wedge brush is good for working extra glue out of the corners and bottom edges.)
The glue should be a solid coat, but not so thick that it runs down the sides or pools at the bottom.
Step 28: Weight it down again and let it dry.
Put the top slab onto the book stack again. Weigh it down again, and let it dry for another 24 hours.
Check in on it, after 15 minutes or so, to make sure the glue doesn't have drips or unsightly bubbles.
Step 29: Trim the inside glue.
After the inside glue has dried, take the weight and the top slab off.
Use a box cutter or X-Acto knife to trim the protruding dry glue off the inside of the cavity. You want a nice smooth edge on all sides.

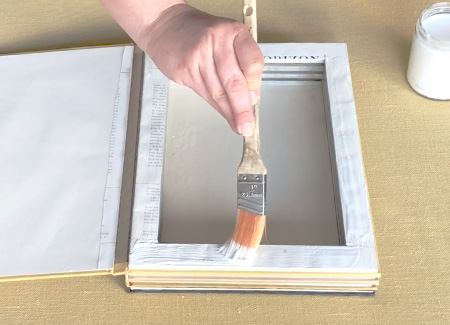

Step 30: Glue down the front endpaper.
Brush a thin layer of glue around the top surface of the book stack. Make sure there's no blobs of glue stuck in the corners.
Lay the endpaper down onto the pages, lining it up to the edges. Press it down and smooth it out by hand.

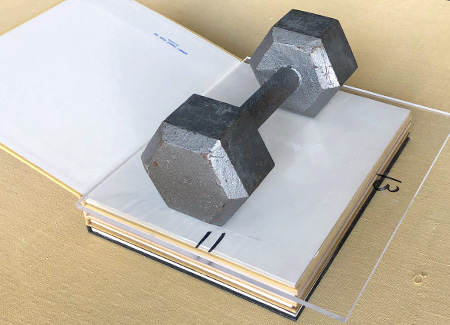

Step 31: Weigh it down for the last drying session.
Put the top slab and the weight back onto the book stack for one last 24 hour period.
Step 32: Cut out the top endpaper.

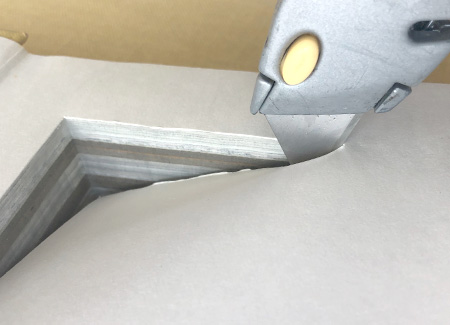

Since the sides and corners are hidden under the endpaper, you have to explore a bit to find the first side.
Insert the blade near a corner, and then carefully slide it towards the outside. Once you've found a side of the cavity, run the blade along that side until it stops in the corner.
Once you've found that corner, you can start there to cut out the next side. Repeat this process around the cavity.
Clean up the corners with an X-Acto knife. Do a final inspection to make sure the entire book looks good.

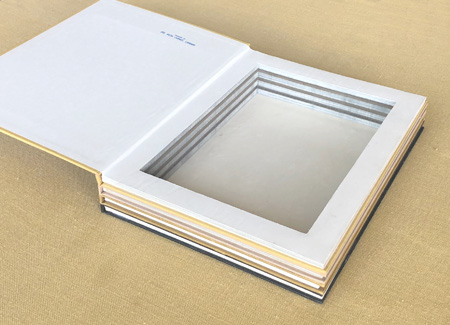

Do a final inspection to make sure the entire book looks good. And you're done! Nice, isn't it?
FAQ: How long does this process take?
It looks like a lot, but since I make multiple books at the same time, I end up spending about two hours of labor to make each one. Half of this time is spent cutting the cavity on the scoll saw.
